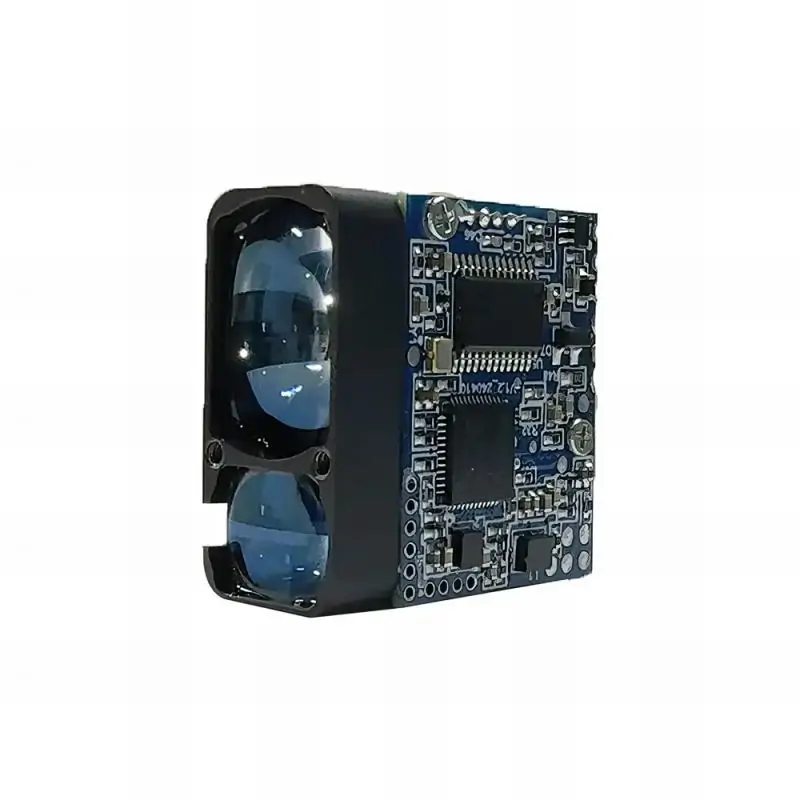

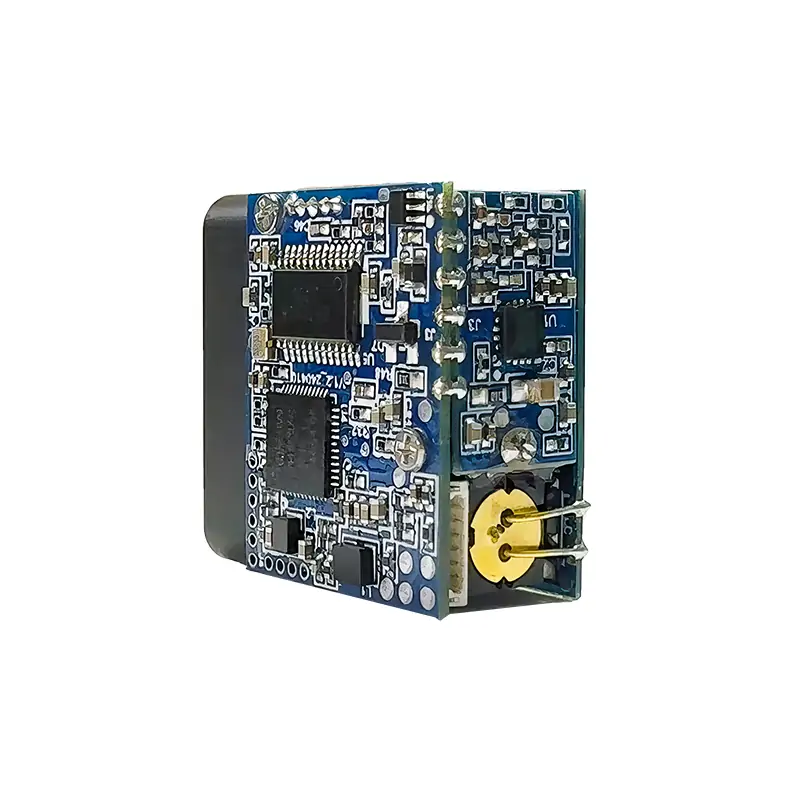

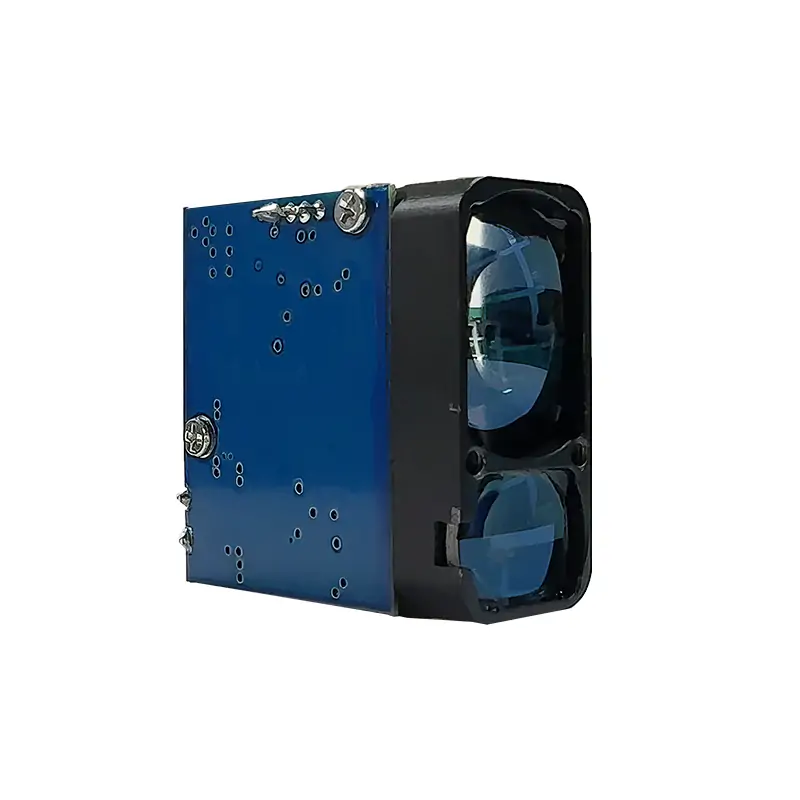

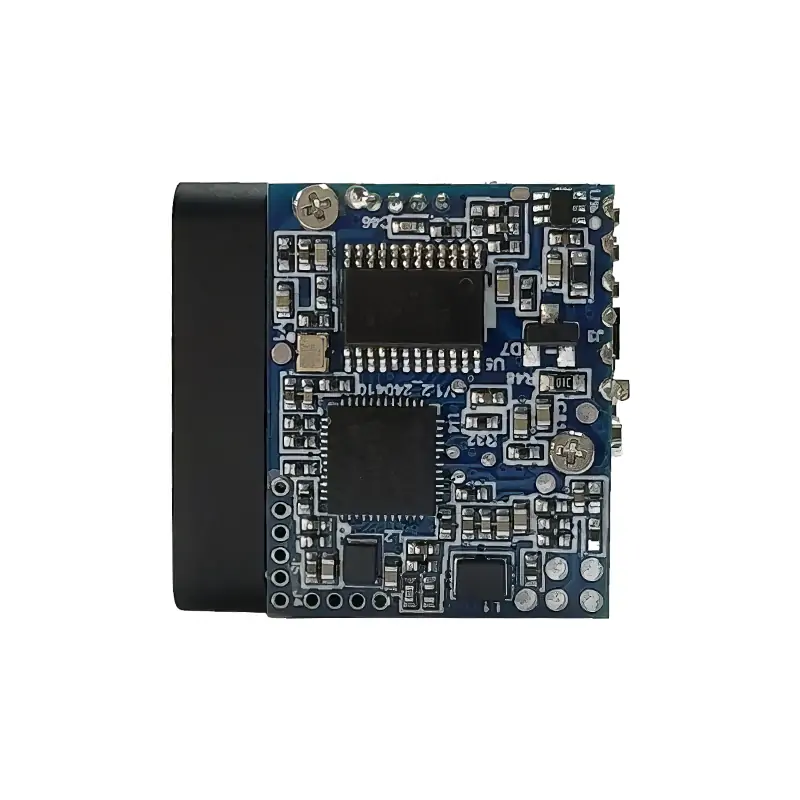

The DLRF-C2.0 laser ranging module features a 905nmeye-safe laser diode for a durable, low-power solution.lt'sused in drones， outdoor handhelds, and for distancemeasuring across aviation, law enforcement, railways, powerhydrology，telecommunications，environmental， geologicalconstruction, firefighting， agriculture,forestry，and outdoor
sports.
KEY FEATURES Developing based on 905nm laser diode Ranging distance from 3m to 2000m Small size and light weight (only 11g) Stable performance and easy to mount Customization available | APPLICATIONS Ranging Target |
| Parameters | Value | Remarks |
| Laser wavelength | 905nm | |
| Measurement Range | 3-2000m | |
| Accuracy | ±1m | |
| Resolution | 0.1m | |
| Frequency | 1~10Hz(Adaptive) | |
| Precision Rate | ≥98% | |
| Divergence Angle | ≤6mrad | |
| Supply Voltage | DC 3.0V~5.0V | |
Average Power Consumption | ≤0.8W | |
| Communication Type | UART(TTL 3.3V Standard) | Customizable |
| Baud Rate | 9600 bps | |
| Structural Material | Aluminum-made | |
| Dimensions | ≤25mm×26mm×13mm | |
| Weight | 11±0.5g | Customizable |
| Operating Temp. Environment | -20℃~+65℃(Customizable-40℃) | Customizable |
Visibility ≥ 10km, humidity ≤ 70%, large target: target size larger than beam size
Support customizati
