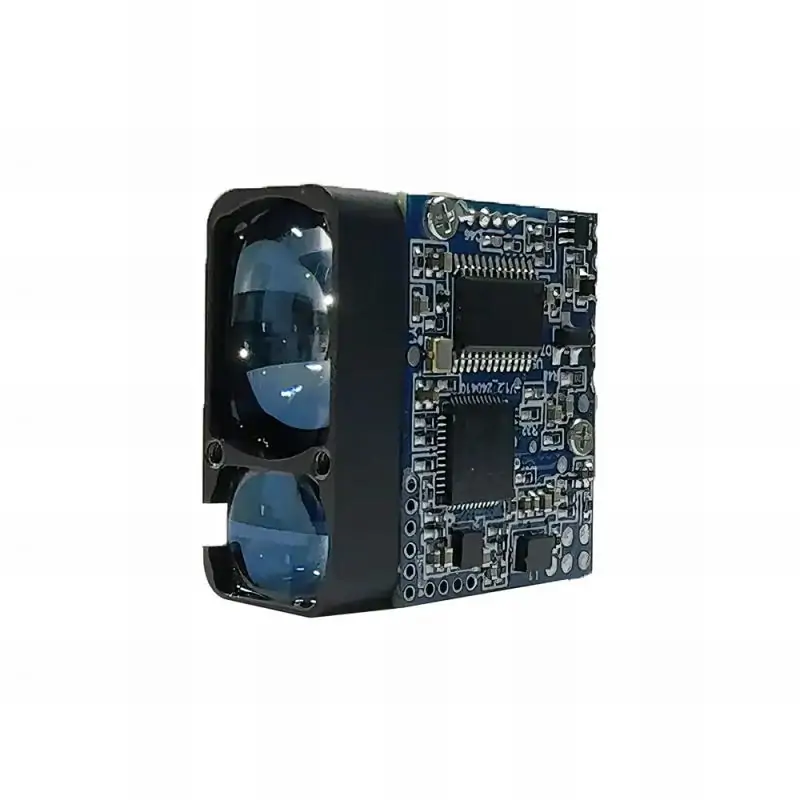

The DLRF-C1.5 is a compact，coin-sized laser rangingmodule with a 905nm eye-safe laser diode.lt's lightweight at 11g, easy to integrate, and capable of distances up to 1500mdeal for drones,handheld outdoor devices, and applicationsin sectors like aviation, law enforcement, rail, power, watermanagement，telecom,environment,geology， construction,fire services, agriculture, forestry, and outdoor sports.
KEY FEATURES Developing based on 905nm laser diode Ranging distance from 3m to 1500m Small size and light weight (only 11g) Stable performance and easy to mount Customization available | APPLICATIONS Target |
| Parameters | Value | Remarks |
| Laser wavelength | 905nm | |
| Measurement Range | 3-1500m | |
| Accuracy | ±1m | |
| Resolution | 0.1m | |
| Frequency | 1~10Hz(Adaptive) | |
| Precision Rate | ≥98% | |
| Divergence Angle | ≤6mrad | |
| Supply Voltage | DC 2.7V~5.0V | |
Average Power Consumption | ≤1mW | |
| Communication Type | UART(TTL 3.3V Standard) | Customizable |
| Baud Rate | 9600 bps | |
| Structural Material | Aluminum-made | |
| Dimensions | ≤25mm×26mm×13mm | |
| Weight | 11±0.5g | Customizable |
| Operating Temp. Environment | -20℃~+65℃(Customizable-40℃) | Customizable |
1. Unless specifically stated, the technical parameters provided in this document are typical values.
2. The technical documentation in this document, including typical attributes of dimensions, can serve as a basis for structural design. However, before finalizing the structure, please contact Lumispot for design assistance and advice.
3. The content and module specifications provided in this document are subject to change without notice. Illustrations, descriptions, and technical data are not binding and may be modified with product upgrades. All previous versions of this datasheet are invalid.
4. Without prior written permission from the company, this document may not be copied, in whole or in part, including but not limited to through photography, on paper, electronically, or by any other means (including conversion to any machine-readable form), and the information must not be made available to any unauthorized third parties.
