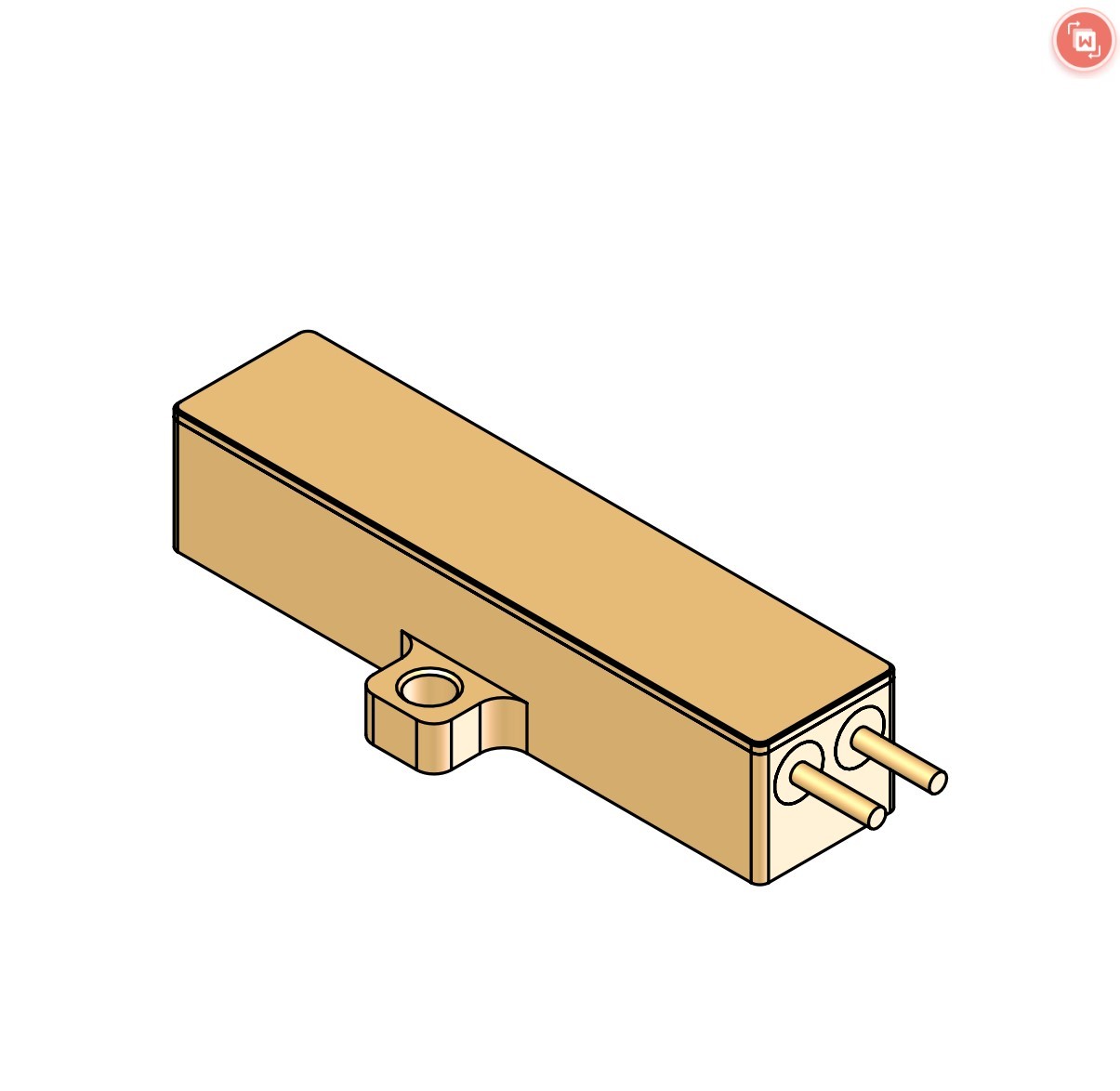

ELT500-F10-B15 erbium glass laser, used in the field of human eye safety rangefinder. Positioned as an independent, controllable, and domestically produced core component, it has the characteristics of reliability and cost-effectiveness.
Product Description:
ELT500-F10-B15 domestically produced erbium glass laser, used in the field of human eye safety rangefinder. Positioned as an independent, controllable, and domestically produced core component, it has the characteristics of reliability and cost-effectiveness. The semiconductor pump source independently produced by Liangyuan Laser is integrated with advanced erbium glass crystals in China.
Product Feature:
Human eye safety
Small size and light weight
High photoelectric conversion efficiency
Adapt to the harsh environment
Product Application：
Rangefinding
LIDAR
Laser Communication
Product Specifications：
| Item | Parameter |
| wavelength | 1535±5nm |
| Pulse width (FWHM) | 3~6ns |
| pulse energy | ≥500μJ |
| repetition frequency | 1~10Hz |
| Beam quality (M ²) | ≤1.3 |
| Spot diameter (1/e ²) | 0.3mm |
| divergence angle | ≤15mrad |
| Working Voltage | ＜2V |
| operating current | 18A |
| pulse width | ≤2.5ms |
| Operating Temperature | -40~+65℃ |
| Storage temperature | -50~+75℃ |
| lifespan | ＞10^7times |
| weight | 13g |
Notes:
Anti static measures must be taken during transportation, storage, and use.
Short circuit protection should be connected between the pins of the laser diode.
Use a constant current power supply to avoid wave peaks and surges during operation.
The operating temperature, frequency, pulse width, and current of the laser must not exceed the range specified in the specification sheet.
The laser window should be kept clean and free from contamination to prevent abnormal light emission.
