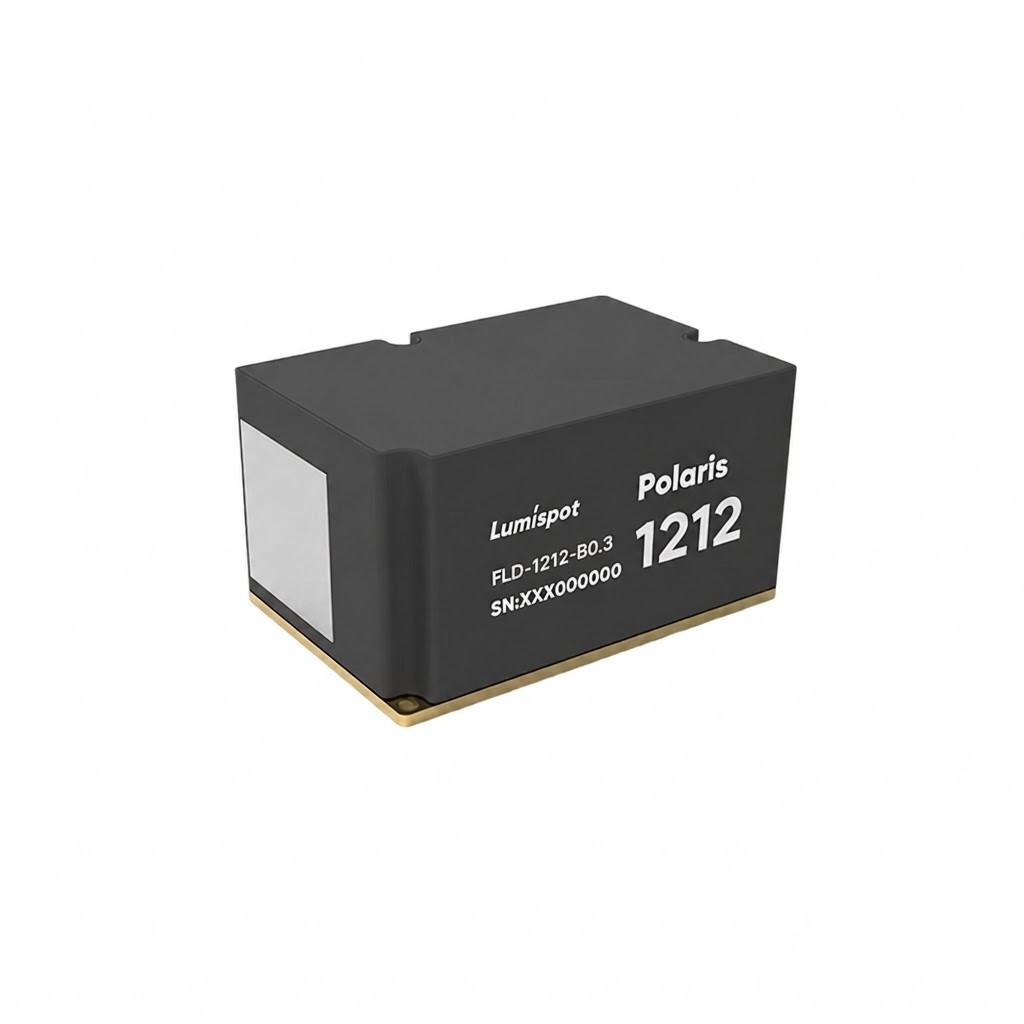

120mJ Laser Designator Module

Product Features

l Appearance: Angular minimalist design with full metallic enclosureand zero exposed electronic components.

l Athermalized: No external thermal control| Full-range instant operation.

l Common Aperture: Shared optical path for transmit/receive channels

l Compact lightweight design | Ultra-low power consumption

Product Introduction

Lumispot's latest "Polaris Series" laser designator features patented laser technology that ensures highly reliable and stable laser output even in harsh environments. The compact and lightweight design, based on advanced thermal management technology, meets the stringent size and weight requirements of military electro-optical platforms.

Main Functions

(1) Serial port control, receiving and responding to the upper computer bus instructions;

(2) Power-on/off function;

(3) Laser ranging function, reporting the distance value in real time;

(4) APD locking protection function;

(5) Distance selection function;

(6) Laser designation function, capable of conducting laser designation in accordance with the specified internal synchronous encoding and external synchronous encoding;

(7) Laser signal synchronization output function;

(8) Laser pulse counting function;

(9) Equipment status self-check and monitoring function;

(10) Power protection function;

(11) Serial port online upgrade function

Application Fields

Airborne, Naval, Vehicle-mounted, and Individual Systems

Core Competitiveness of Products

l Stable output over the full temperature range

l Dynamic Thermo-Stable Cavity Technology

l Beam Pointing Stabilization

l Homogeneous Light Spot Distribution

Product Customization

l Energy: 20 mJ~300 mJ

l Divergence: 0.1 mrad~3 mrad

l Irregular Radiation Envelope

l Communication Serial Port: RS-422,RS232,TTL

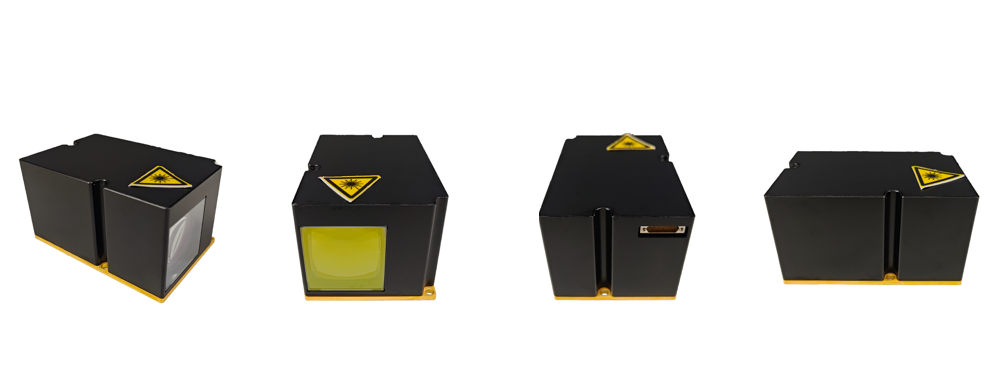

Product Details

Technical Specification
