The handheld laser rangefinder, as a general-purpose observation equipment, is primarily used for measuring target distances during day and night, observing battlefields, and surveying terrains. The handheld laser rangefinder mainly consists of a laser distance measuring module, a visible light imaging module, a low-light imaging module, an OLED viewing module, a digital electronic compass, and a voice module.
Key Features:
· Long-distance observation capability
Photography and video recording functions
· Adjustable focus capability
· Electronic zoom capability
· Tripod interface
· Visual OLED observation capability
· External power supply via power bank, with USB photo transfer capability
Model | ||
![]() | ![]() | |

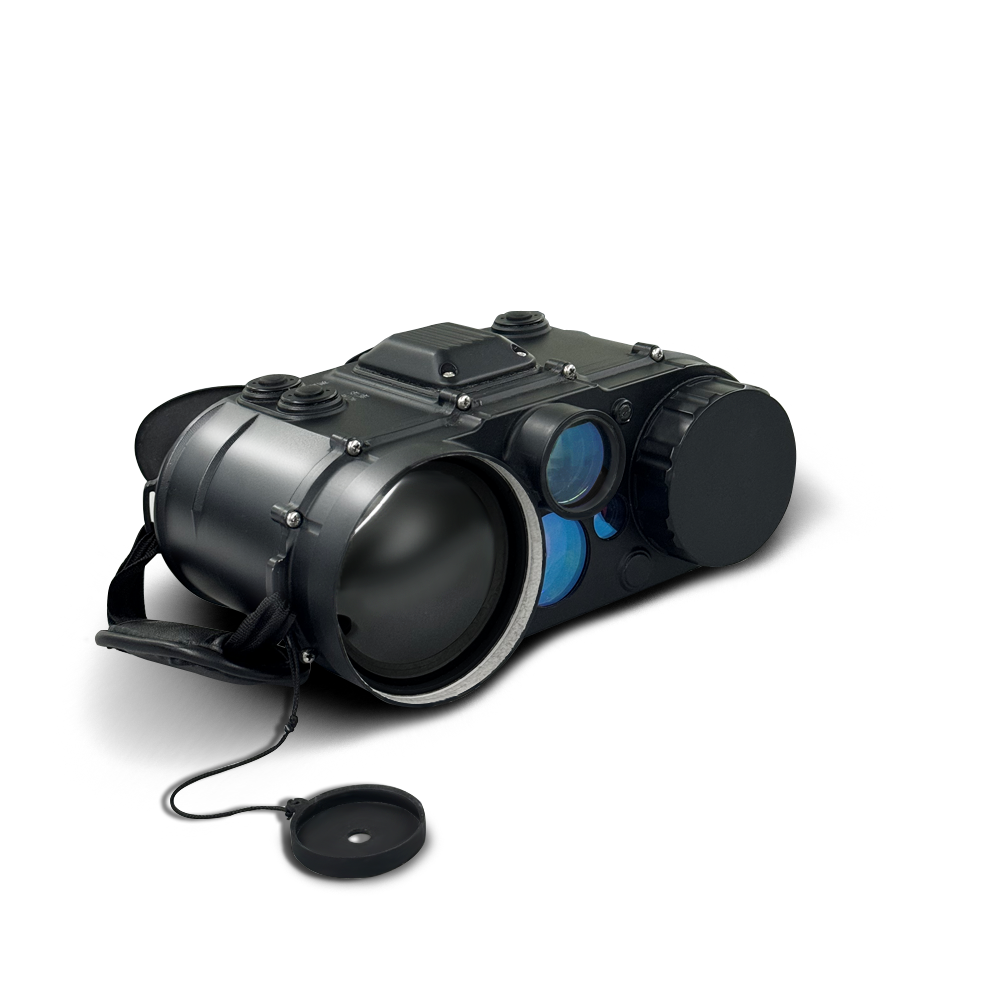

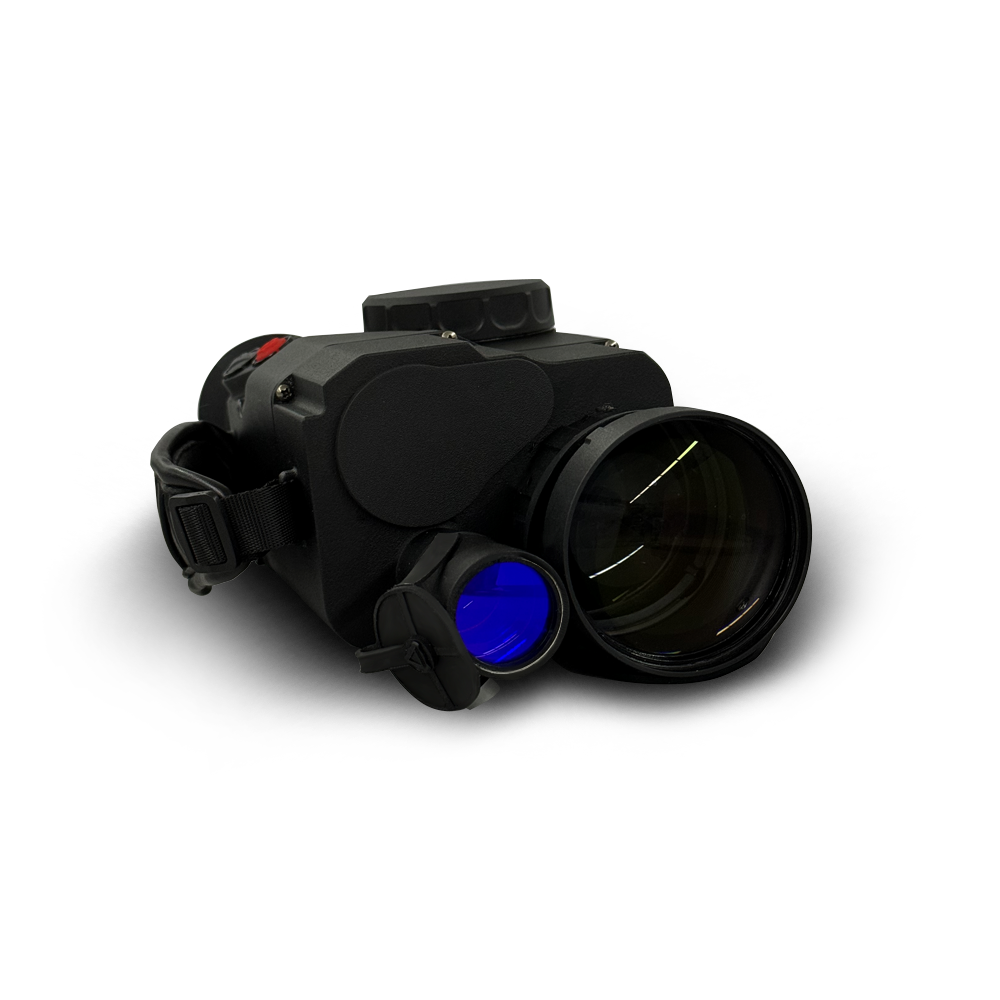

Observation type | Monocular | Binocular |
Cooling method | Uncooled | Uncooled |
Laser Type | 1535nm | 1535nm |
Safety | Eye-safe | Eye-safe |
Range capacity | Daytime (Visibility ≥12km), Ranging ≥6km (Target 2.3*4.6m) Night Low-light (Visibility ≥8km, illuminance 5×10-3lx), Ranging ≥1km (Target 2.3*4.6m) | Visible light (Visibility ≥12km), Ranging ≥6km (Target 2.3*4.6m) Infrared (Visibility ≥10km, Humidity 60%, average temperature difference between target and background 3K), Ranging ≥2.5km (Target 2.3*4.6m) |
Accuracy | Within 20m~2km,Tolerance ≤0.8m Within 2km~6km,Tolerance ≤0.9m | ≤2m |
Optics | ||
Magnification | Visible light: 11X; Low-light: 3.7X; | Visible light: 10X; Low-light: 5X; Infrared: 5X |
Field of view | Visible light: 3° X 2.2°; Low-light: ≥9° X 6.7°; | Visible light: 3.45° X 2.58°; Low-light: ≥6.96° X 5.64°; Infrared: ≥6.96° X 5.64° |
Azimuth accuracy | ≤±0.5° | ≤±0.5° |
Inclination accuracy | ≤±0.5° | ≤±0.5° |
Others | ||
Working temperature | -40℃~+55℃ | -40℃~+55℃ |
Storage temperature | -55℃~+70℃ | -55℃~+70℃ |
Waterproofing grade | IP67 | IP67 |
GPS | Optional | Optional |
Data Interface - Standard | RS232 | RS232 |
Dimension | 245mm * 120mm * 92mm | 244mm * 238mm * 92mm |
Weight (Battery included) | ≤1.08kg | ≤2.48kg |
