905nm 1000m Rangefinder Module

The LSP-LRS-1000 is a compact,coin-sized laser rangingmodule with a 905nm eye-safe laser diode.lt's lightweight at 10g, easy to integrate, and capable of distances up to 1000mdeal for drones,handheld outdoor devices, and applicationsin sectors like aviation, law enforcement, rail, power, watermanagement,telecom,environment,geology, construction,fire services, agriculture, forestry, and outdoor sports.


KEY FEATURES

Developing based on 905nm laser diode

Ranging distance from 5m to 1000m

Small size and light weight (only 10g)

Stable performance and easy to mount

Customization available

APPLICATIONS

Ranging

Target

Security and Surveillance

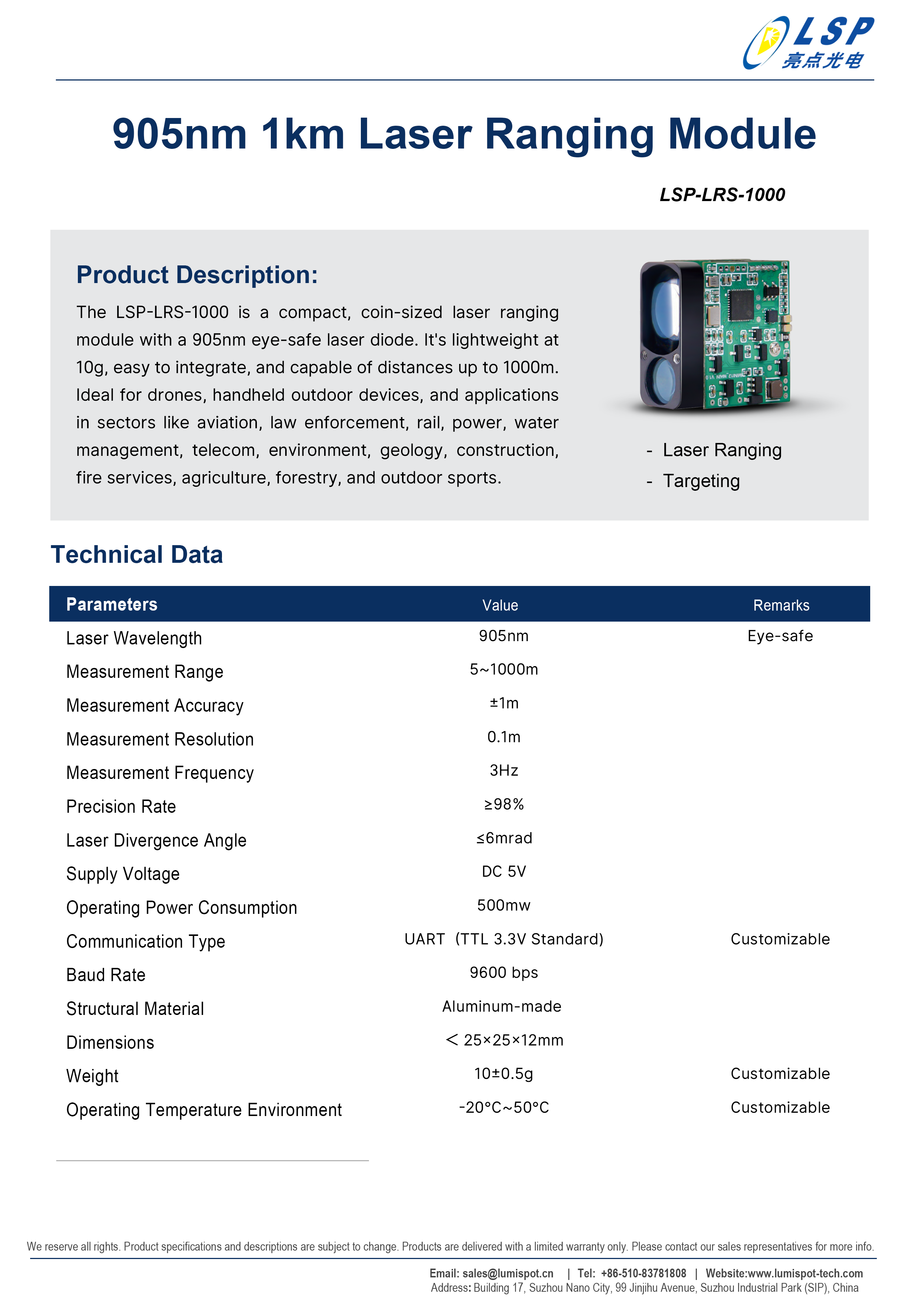

Technical Datasheet

ParametersValueRemarks
Laser wavelength905nm
Measurement Range5-1000m
Accuracy±1m
Resolution0.1m
Frequency3Hz
Precision Rate≥98%
Divergence Angle≤6mrad
Supply VoltageDC 5V
Operating Power Consumption500mW
Communication Type
UART(TTL 3.3V Standard)Customizable
Baud Rate
9600 bps
Structural Material
Aluminum-made

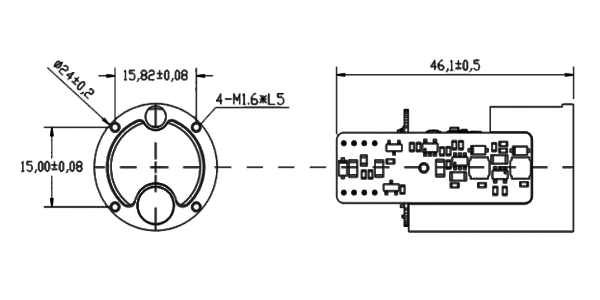

Dimensions
25×25×12mm
Weight
10±0.5gCustomizable
Operating Temp. Environment
-20°C~50°CCustomizable


Applicatable Platform Cases



Note

1. Unless specifically stated, the technical parameters provided in this document are typical values.

2. The technical documentation in this document, including typical attributes of dimensions, can serve as a basis for structural design. However, before finalizing the structure, please contact Lumispot for design assistance and advice.

3. The content and module specifications provided in this document are subject to change without notice. Illustrations, descriptions, and technical data are not binding and may be modified with product upgrades. All previous versions of this datasheet are invalid.

4. Without prior written permission from the company, this document may not be copied, in whole or in part, including but not limited to through photography, on paper, electronically, or by any other means (including conversion to any machine-readable form), and the information must not be made available to any unauthorized third parties.
