1940nm Single Emitter Laser Diode

LumiMetriC provides the mid-infrared laser products with 1940nm wavelength. Based on quantum well structure of InGaAsSb/AlGaAsSb material, the CoS packaged 1940nm single emitters feature high optical power up to 1W in combination with high wall-plug efficiency. Customers can easy to use these CoS single emitters for collimation and coupling the beam into the fiber.
LumiMetric develops a series mid-infrared diode lasers in single emitter and bar packages. Benefit from the advantages of mid-infrared laser diode packaging and manufactory technology and experience, these diode lasers provide excellent performance and reliability.

PDF.jpg  DataSheet-1940nm-single-emitter-laser-diode
KEY FEATURES

Up to 1W optical power

Highly efficient and reliable

High thermal conductive AlN substrates with AuSn solder

APPLICATIONS

Medical Application

Illumination

Pumping of Mid-infrared Solid-state Lasers

Specifications (20°C)

OPTICAL PARAMETERS

UNIT

1940-001W

Min.

Typ.

Max.

Output Power

W


1


Wavelength

nm

1920

1940

1960

Wavelength Shift with Temperature

nm/°C


1


Spectral Width (FWHM)

nm


13

16

Fast Axis Divergence (FWHM)

Deg.


55

60

Slow Axis Divergence (FWHM)

Deg.


18

25

Threshold Current

A


0.15

0.25

Operating Current

A


4.0

4.2

Operating Voltage

V


1.2

1.7

Slope Efficiency

W/A

0.25

0.32


Emitting Width

µm


100


Cavity Length

mm


1.0


Chip Width

mm


0.5


Chip Thickness

µm

130

135

140

Operating Temperature

°C

10


50

Storage Temperature

°C

-10


60

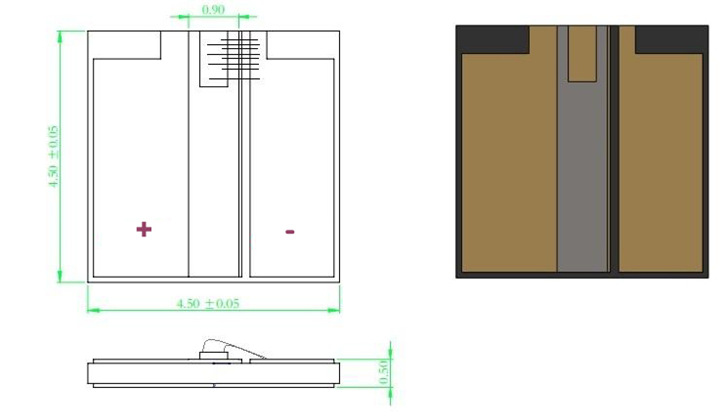

Packaging Information
