1940nm CS Packaged Laser Diode Array

LumiMetriC provides the mid-infrared laser products with 1940nm wavelength.Based on quantum well structure of InGaAsSb/AlGaAsSb material, the CS packaged 1940nm laser diode array feature high optical power up to 10W in combination with high wall-plug efficiency. Customers can easy to use these CS packaged laser bars for collimation and coupling the beam into the fiber.
LumiMetric develops a series mid-infrared diode lasers in single emitter and bar packages. Benefit from the advantages of mid-infrared laser diode packaging and manufactory technology and experience, these diode lasers provide excellent performance and reliability.

PDF.jpg  DataSheet-1940nm laser diode array

KEY FEATURES

Up to 10W optical power

Highly efficient and reliable

Standard CS package

APPLICATIONS

Medical Application

Illumination

Pumping of Mid-infrared Solid-state Lasers

Specifications (20°C)

OPTICAL PARAMETERS

UNIT

1940-10W-CS

Min.

Typ.

Max.

Output Power

W


10


Wavelength

nm

1920

1940

1960

Wavelength Shift with Temperature

nm/°C


1


Spectral Width (FWHM)

nm


13

16

Fast Axis Divergence (FWHM)

Deg.


55

60

Slow Axis Divergence (FWHM)

Deg.


18

25

Threshold Current

A


4.5

5

Operating Current

A


40

45

Operating Voltage

V


1.2

1.7

Slope Efficiency

W/A

0.25

0.32


Emitting Width

µm


90


Number of Emitters

mm


19


Cavity Length

mm


90


Bar Thickness

µm

130

135

140

Operating Temperature

°C

10


50

Storage Temperature

°C

-10


60

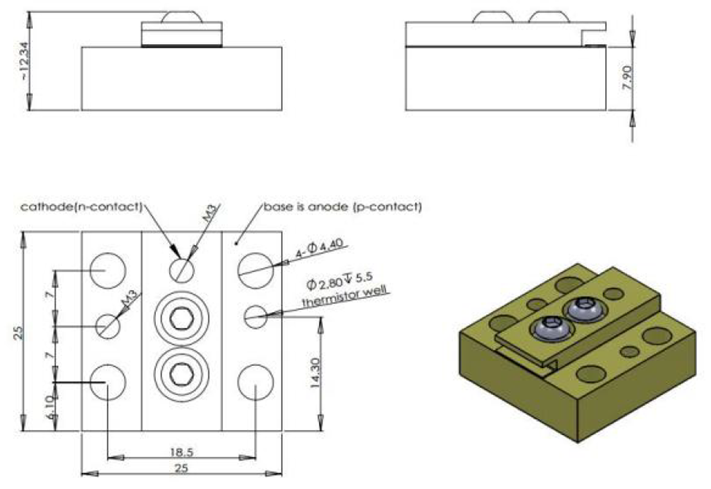

Packaging Information
