1535nm 400µJ Eye-safe DPSS Laser

The 1535nm/400µJ laser is an “eye-safe” diode-pumped passively q-switched Erbium glass laser. At this wavelength, eye safe laser makes laser ranging applications safer for the end user. With a very compact packaging, the design enables stable operation over a wide temperature range without temperature control.

LumiMetriC developed high-peak-power diode-pumped solid-state (DPSS) lasers with approximately 4ns pulses, offered in models with pulse energies ranging from 40µJ to 2mJ and pulse rates ranging from 1Hz to 1kHz. These lasers benefit from a fully mastered technology, with appropriate design for improved efficiency and reliability, operating from -40°C up to +55°C. These features make the laser ideal for applications including laser range-finding, laser imaging and surveying equipment.

PDF.jpg  DataSheet-1535nm DPSS Eye-safe Laser 400uJ
KEY FEATURES

Eye-safe Wavelength

Compact Package Design

Low Power Consumption

High Reliability

APPLICATIONS

Integrating Photodiode

Laser Driver/ System Electronics


Specifications (20°C)

Performance

PARAMETERS

VALUE

Pulse   Energy

> 400µJ

Peak   Power

≥ 80kW

Optical

Wavelength

1535nm

Pulse Width

4ns

Pulse Repetition Frequency

10Hz

Pulse Build-up Time

< 2.5ms

Energy Stability

< 5%

Beam Diameter (1/e2)

0.2mm

Beam Divergence

≤ 12mrad

M Squared

≤ 1.3

Electrical

Operating Current

≤ 15A

Operating Voltage

< 2V

Environmental

Operating Temperature Range

-40°C ~ +65°C

Storage Temperature Range

-55°C ~ +75°C

Lifetime (MTTF)

≥ 20 million shots

Physical

Weight

≤ 10g

Dimensions (L/W/H)

34.0mm x 18.0mm  x 7.7mm

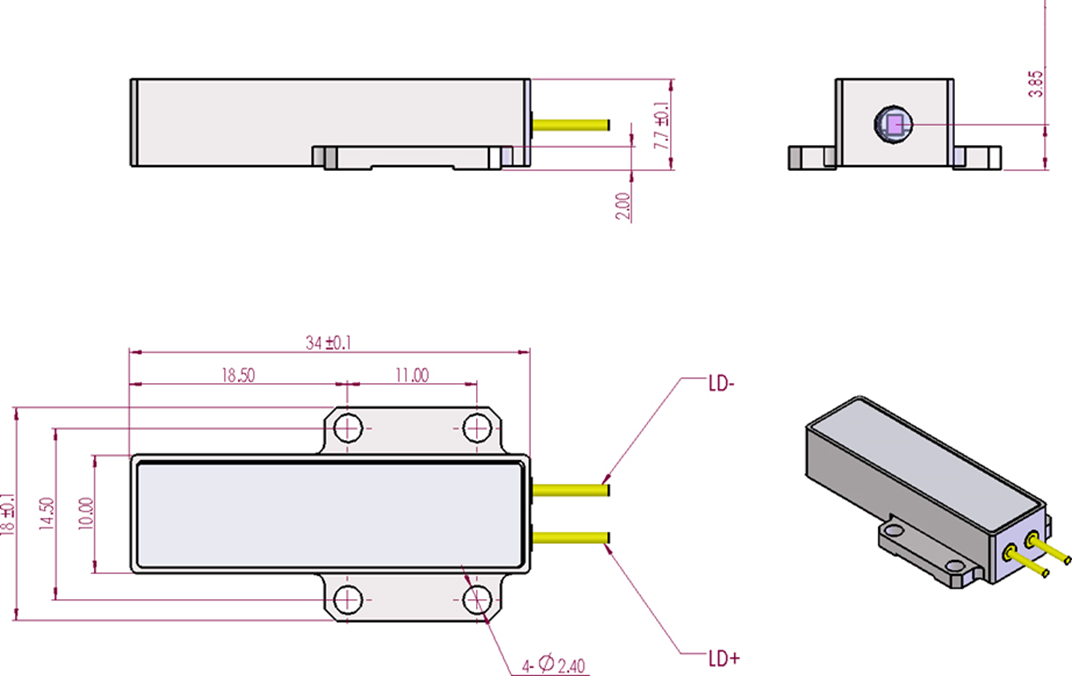

Packaging Information
